<strong>Specifications</strong>
Model HFI-01/S
Linkage Category 1/2
Frame Heavy Duty Steel Channel
Width of Hal 31″ (78 cm)
Height of Hal 49.5″ (126 cm)
Length of Hal 30″ (76 cm)
Number of Blades 1
Weight 110 kg
Working Depth 21″ (53 cm)
Read more
<strong>Specifications</strong>
Swinging Drawbar.
Length: 30 in.
Thickness: 1 in.
Width: 1-7/8 in.
Pin holes on tractor end: 1 in.
Pin holes on attachment end: 3/4 in.
Lateral movement.
Hauling device more flexible when turning.
Read more
<strong> Tine Tiller Specification</strong>
Frame Type Pipe Set and Z Type
Number of Tines 9,11 & 13
Linkage Category I & II
Working Depth 229 mm
Tine Spacing 229 mm to 254 mm
HP Compatibility 50 to 85 HP
Read more
<div class="woocommerce-product-details__short-description">
<div><strong>Technical Specifications of a Tractor Backhoe</strong></div>
<div>• Maximum weight lifting capacity: 1000 Kgs</div>
<div>• Maximum digging depth: 92.6”-146”</div>
<div>• Bucket size: 16”x18”</div>
<div>• Swing arc: 145 degrees</div>
<div>• Bucket rotation: 165-170 degrees</div>
<div>• Hydraulic pressure: 2250 PSI</div>
<div>• Boom height from ground: 118”-188”</div>
<div>• Transport height: 132”</div>
<div>• Tractor compatibility: 80-110 HP</div>
</div>
<div id="enquiry" class="pe-enq-wrapper"></div>
Read more

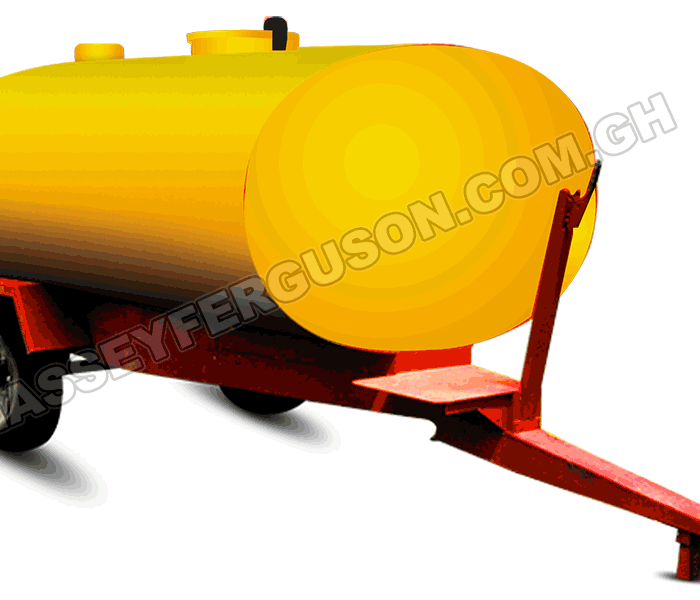

<strong>Specifications
</strong>Movement Tractor Towable
Availability 500 gallons to 2000 gallons
Chassis channel 8” x 3”
Baffle plate 1
Tractor compatibility 50 HP and above<strong>
</strong>
Read more
<strong>Specification</strong>
Cutting Width 7.5Ft
No of Blades 29
Weight with Kit 275Kgs
Maximum length 7.8 ft
Source of power up 25 hp
Cutting width 7.5 feet
Maximum Width 2.37ft
Maximum Height 2.37Ft
Read more
<strong>Specifications
</strong>No of Cutter 104-128
Height with Wheels 6’
Length of Drum 4.5’ – 5.5’
PTO Speed 540RPM
Fuel Consumption 7-7.5l/hr
Tractor compatibility 50 HP and above<strong>
</strong>
Read more

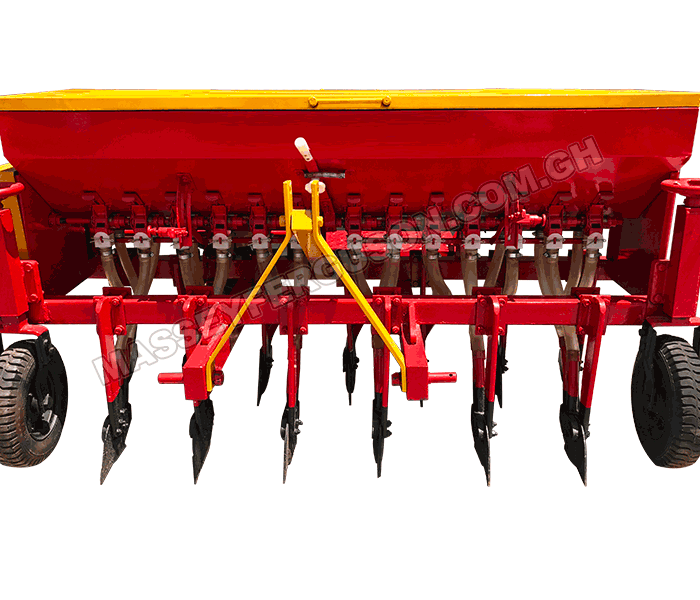

<strong>Zerotillage Planter Specification</strong>
Row Spacing 10”
No of Rows 9 -13
Linkage 3 Pt
Weight Approx. 400KGS
Seeds able to plant Rice, cotton, maize, millet, sorghum
Read more
